Typ s372

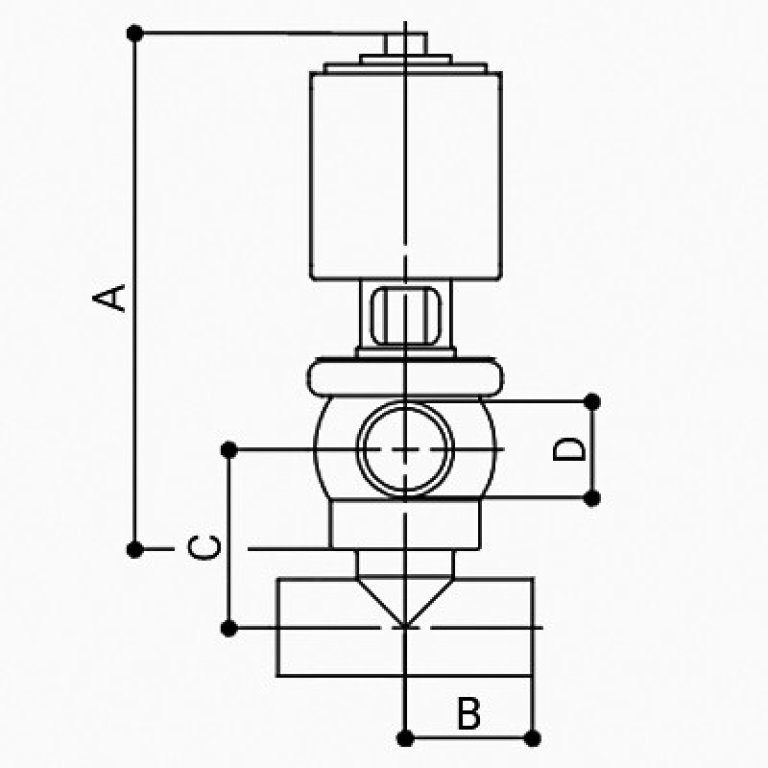

| DN |
A |
B |
C |
D |
E |
Article |
| 1" |
273 |
52 |
63,7 |
|
25,40x1,65 |
12S37211003320 |
| 1½" |
281 |
58 |
75,6 |
|
38,10x1,65 |
12S37211123320 |
| 2 |
294 |
70 |
93,4 |
|
50,80x1,65 |
12S37212003320 |
| 2½" |
350 |
78 |
104,8 |
|
63,50x1,65 |
12S37212123320 |
| 3" |
432 |
84 |
122,6 |
|
76,20x1,65 |
12S37213003320 |
| 4" |
447 |
102 |
146,3 |
|
101,60x2,11 |
12S37214003320 |
| 6" |
590 |
140 |
239,6 |
|
152,40x2,77 |
12S37216003320 |
Article properties
| Artikel |

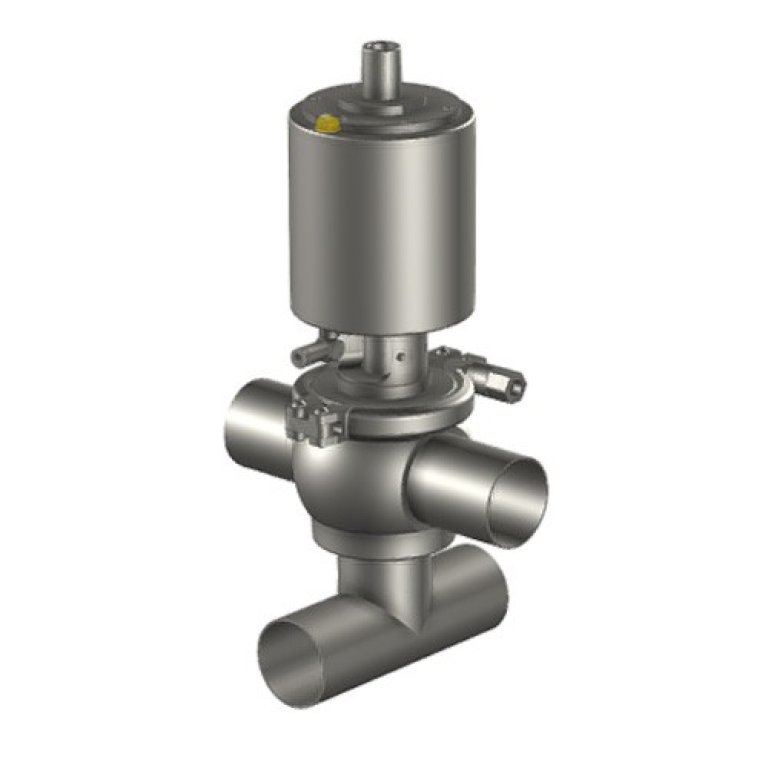

Change over valve |
| Uitvoering |
Hygienic |
| Type huis |
Cross |
| Aansluiting |
Weld/Weld |
| Materiaal |
1.4404 (316) |
| Afdichting |
EPDM o-ring |
