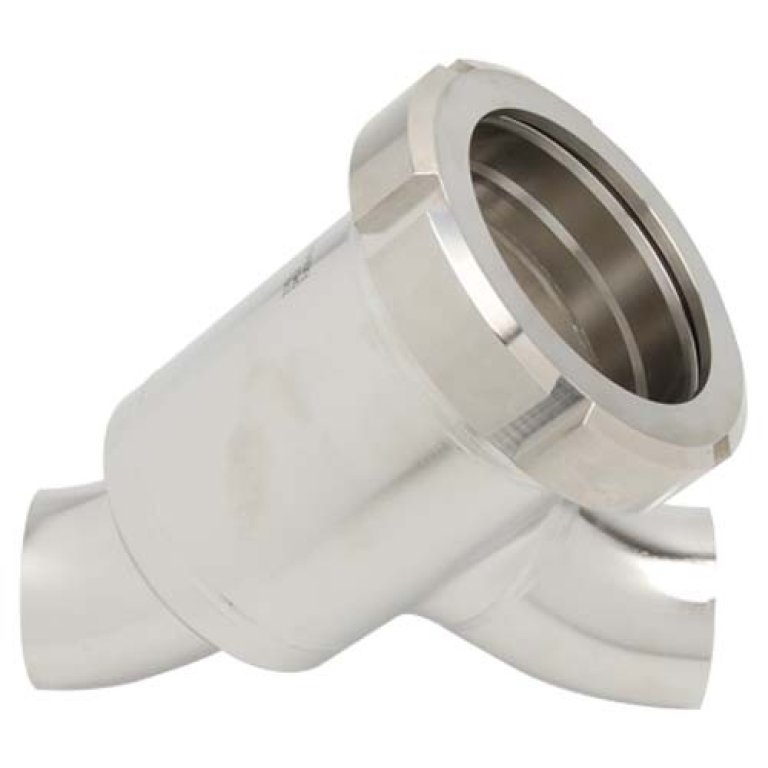

Filtr kątowy korpusu

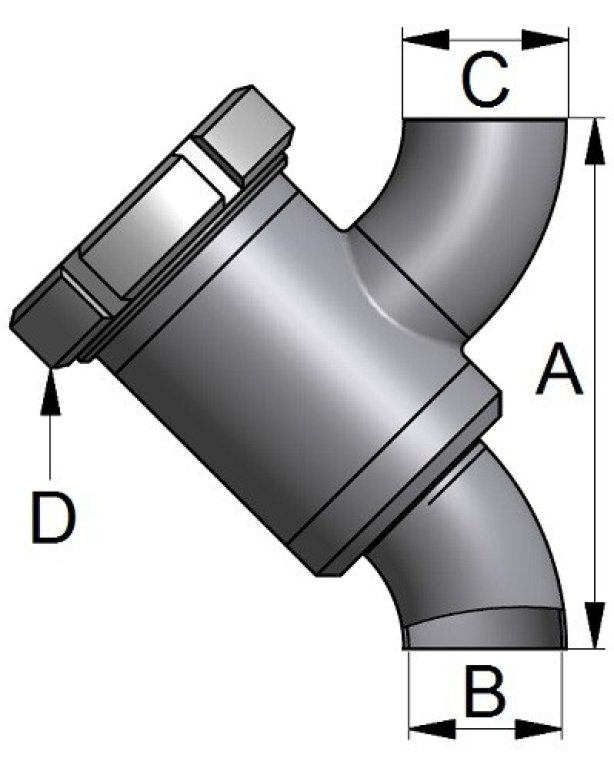

| DN | A | B | C | E | Art.no. 09060 Article 304 W/W | |||
|---|---|---|---|---|---|---|---|---|
| DN25 | 120.0 | 26.0 | 29.0 | 5004221 | 5004 551 |
5004 223 |
5004 |
|
| DN32 | 120.0 | 32.0 | 35.0 | 5005221 | 5005 551 |
5005 223 |
5005 553 |
|
| DN40 | 166.0 | 38.0 | 41.0 | 5006221 | 5006 551 |
5006 223 |
5006 553 |
|
| DN50 | 174.0 | 50.0 | 53.0 | 5007221 | 5007 551 |
5007 223 |
5007 553 |
|
| DN65 | 214.0 | 66.0 | 70.0 | 5008221 | 5008 551 |
5008 223 |
5008 553 |
|
|
DN80 |
252.0 | 81.0 | 85.0 |
5009221 |
5009 551 |
5009 |
5009 553 |
|
| DN100 | 286.0 | 100.0 | 104.0 |
5010221 |
5010 551 |
5010 223 |
5010 553 |
|
Article properties
| Brand | M&S Equipment |
| Connections | Male / Male - Weld / Weld |
| Field of application | Food & Chemistry |
| Flow direction | Inside out |
| Material | 1.4301 (304) and 1.4404 (316L) |
| Gasket | EPDM |
| Certification | 3.1 According to EN10204, FDA and EC1935/2004 |
