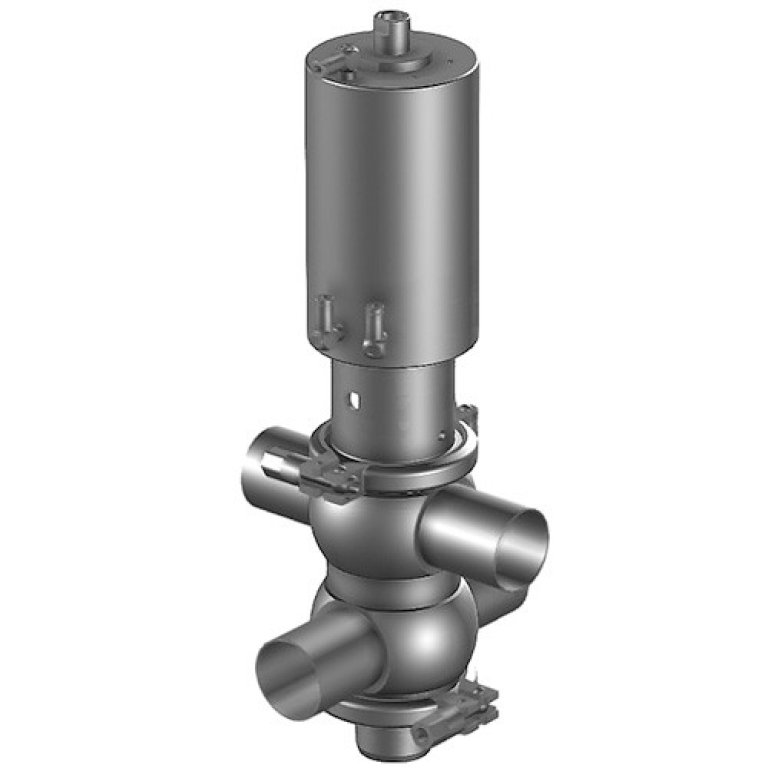

Typ D624

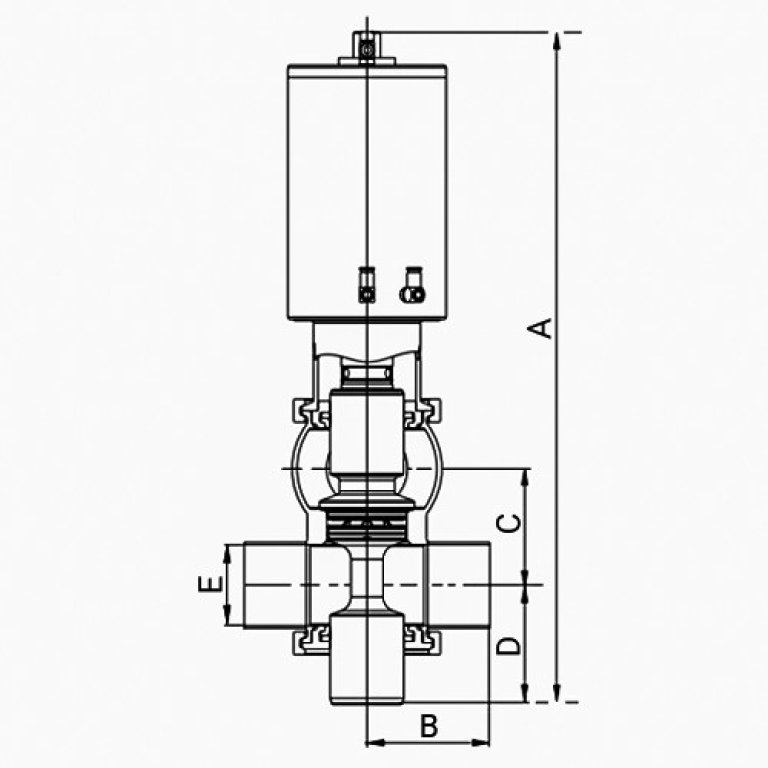

| DN |
A |
B |
C |
D |
E |
Article |
| DN25 |
402,5 |
80 |
47 |
57,5 |
25,40x1,65 |
12D62411003320 |
| DN40 |
434,4 |
80 |
62 |
68,4 |
38,10x1,65 |
12D62411123320 |
| DN50 |
481 |
100 |
79 |
82 |
50,80x1,65 |
12D62412003320 |
| DN65 |
548 |
100 |
95 |
94 |
63,50x1,65 |
12D62412123320 |
| DN80 |
577 |
120 |
110 |
100 |
76,20x1,65 |
12D62413003320 |
| DN100 |
626 |
150 |
129 |
118 |
101,60x2,11 |
12D62414003320 |
| DN150 |
826 |
200 |
180 |
155 |
152,40x2,77 |
12D62416003320 |
Article properties
| Article |
Change over valve |
| Version |
Hygienic |
| Housing type |
D620 |
| Port Configuration |
A - B - C - E |
| Connection |
Weld/Weld |
| Material |
1.4404 (316) |
| Seal |
EPDM o-ring |
